7 Segment LED Display: Working Principle, Pinout, Drivers & Applications

What Is a 7 Segment LED Display

A 7 Segment LED Display is a type of LED numeric display used to show digits (0–9) and a limited set of characters by lighting up seven individual LED segments arranged in a figure-eight structure, plus an optional decimal point.

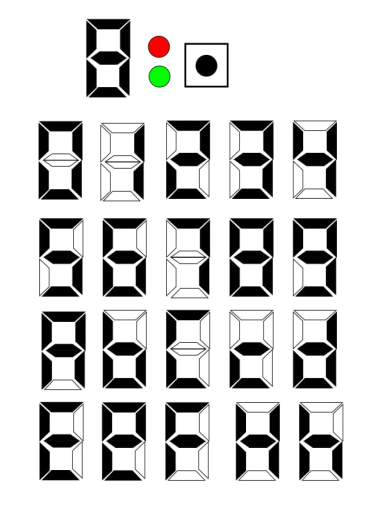

Each segment is labeled from a to g, and each digit is formed by activating a specific combination of segments.

For example:

• “0” = a, b, c, d, e, f
• “1” = b, c
• “8” = all segments ON

Despite modern LCD and OLED technologies, the 7 segment LED display remains widely used in industrial equipment, automotive dashboards, meters, and consumer electronics because of:

• High visibility in bright environments
• Wide temperature range (-40°C to +85°C)
• Simple driving electronics
• Low cost and long lifespan

---

How 7 Segment Display Works (Basic Principle)

The 7 segment display working principle is based on independently controlling each LED segment using a control circuit such as a microcontroller or a driver IC.

Each segment behaves like a standard LED with:

• Forward voltage (Vf): 1.8V–3.3V depending on color
• Forward current (If): typically 10–20mA

To display a number, the controller sends HIGH or LOW signals to specific segments according to a predefined logic pattern (truth table).

Example logic:

• Digit “1” → only segments b and c ON
• Digit “7” → segments a, b, c ON

This simple structure makes it ideal for LED numeric display applications where clarity and reliability matter more than complex graphics.

---

Common Anode vs Common Cathode 7 Segment Display

There are two electrical configurations in a 7 segment LED display pinout:

Common Cathode 7 Segment Display

• All cathodes connected to GND
• Segment lights when pin is HIGH
• Easier for direct MCU sourcing

Best for:

• Direct Arduino control
• Simple battery-powered circuits
• Transistor switching designs

---

Common Anode 7 Segment Display

• All anodes connected to VCC
• Segment lights when pin is LOW (sink current)
• Very common in driver IC systems

Best for:

• Shift registers (74HC595)
• Driver ICs (MAX7219, TM1637)
• Industrial multiplexed systems

👉 Engineering note: In modern designs, common anode 7 segment display is often preferred because most LED display driver ICs are sink-based.

---

7 Segment Display Pinout and Resistor Design

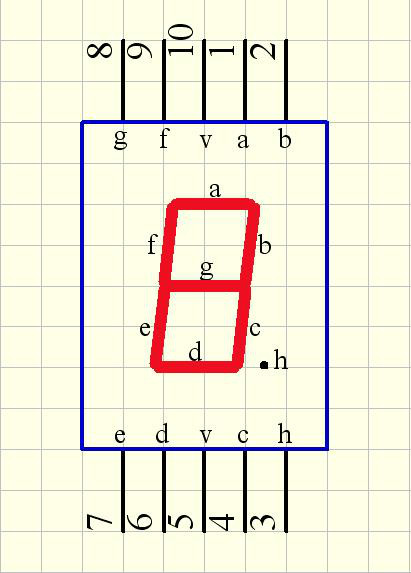

A standard 7 segment display pinout includes:

• a, b, c, d, e, f, g (segments)
• dp (decimal point)
• 1 or 2 common pins (anode or cathode)

Current Limiting Resistor Formula

To protect LEDs:

R = (Vcc − Vf) / If

Example (5V system):

• Vcc = 5V
• Vf = 2V
• If = 20mA

R = 150Ω (typical value: 150Ω or 180Ω)

👉 Important rule:
Each segment must have its own resistor. Do NOT use a single resistor for the common pin.

---

How to Drive a 7 Segment LED Display

There are three main driving methods depending on system complexity.

---

Direct Drive (Arduino 7 Segment Display)

Used for 1–2 digits.

• Each segment connected directly to MCU pins
• Requires 7–8 GPIO pins per digit

Best for:

• Learning projects
• Simple counters
• Basic prototypes

---

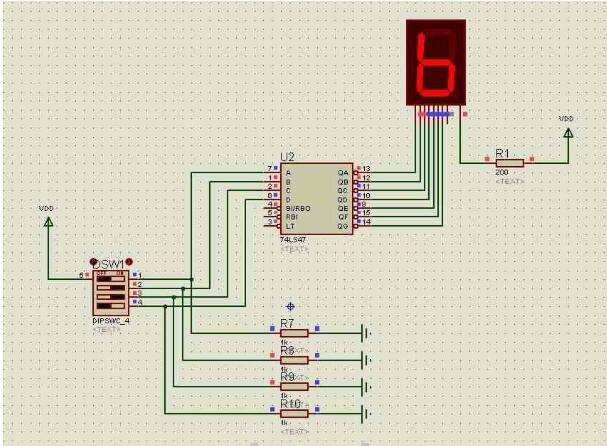

LED Display Driver IC Solutions

For real products, driver ICs are preferred.

👉 The most common choice for production systems is MAX7219 LED display driver IC, because it handles multiplexing and brightness control internally.

---

Multiplexed 7 Segment Display

For multi-digit systems, multiplexed 7 segment display is used.

How it works:

• Only one digit is active at a time
• System scans digits rapidly (>100Hz)
• Human eye perceives continuous display

Key trade-off:

• Lower average brightness per digit
• Requires higher peak current

Example:

• 4-digit display → each digit ON only 25% of time
• Compensation: increase pulse current during active cycle

---

Multiplexing Problems: Flicker & Ghosting

Two common engineering issues:

Flicker

Caused by low refresh rate.

Fix:

• Maintain >60Hz per digit
• Increase scanning frequency

---

Ghosting

Faint unwanted segments lighting up.

Causes:

• Residual charge on lines
• Poor switching timing

Fix:

• Add blanking delay (10–50µs)
• Use proper transistor switching
• Ensure full segment reset between scans

---

7 Segment LED Display vs LCD vs OLED

👉 Conclusion:
For pure numeric display, LED numeric display (7 segment) remains the most reliable industrial solution.

---

Applications of LED Numeric Display

The 7 segment LED display is widely used across industries:

• Industrial controllers (temperature, pressure meters)
• Automotive dashboards (speedometers, fuel display)
• Test equipment (multimeters, counters)
• Medical devices (monitoring systems)
• Consumer electronics (clocks, microwave ovens)
• Retail systems (POS, weighing scales)

Its dominance comes from durability and readability in harsh environments.

---

Troubleshooting Common 7 Segment Display Issues

One segment not working

• LED damaged or broken connection

Flickering display

• Refresh rate too low

Dim display

• Resistor too large or low current

Wrong numbers displayed

• Incorrect common anode/cathode logic

Ghosting effect

• Missing blanking delay

---

Quick Engineering Selection Guide

Choose the right setup:

• 1–2 digits → Direct MCU control
• 3–4 digits → 74HC595 + transistors
• 4–8 digits → MAX7219 driver IC
• Industrial systems → multiplexed architecture

👉 Always design based on I/O count + brightness + cost balance.

---

FAQ: 7 Segment LED Display

What is a 7 segment LED display used for?

It is used for numeric display in industrial, automotive, and consumer electronics.

How does a 7 segment display work?

It lights specific LED segments based on input signals from a controller or driver IC.

What is the difference between common anode and cathode?

Common anode uses LOW to turn ON segments, common cathode uses HIGH.

What is the best driver IC for 7 segment display?

MAX7219 is the most widely used for multi-digit systems.

What is multiplexed 7 segment display?

It is a scanning method where digits are displayed one at a time rapidly.

Can Arduino drive a 7 segment display?

Yes, directly for small systems or via driver IC for larger displays.

Conclusion

The 7 Segment LED Display remains a widely used LED numeric display solution due to its simplicity, durability, and cost efficiency.

Key design decisions include choosing common anode vs common cathode 7 segment display, selecting the right LED display driver IC, defining proper 7 segment display pinout and resistors, and using multiplexed 7 segment display for multi-digit applications.

Although newer display technologies exist, 7-segment displays are still widely used in industrial and automotive systems where reliability and readability are critical.

---
