Model NO.
KEM-12088-A/BSRG
Price:
USD 1.20-1.60
Delivery:
FOB
Minimum order quantity:
1
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:18mm
  • Tube Chip Color:Dual color
  • Brand Name:KEM
  • Model Number:KEM-12088-A/BSRG
  • Screen Dimension:32x32mm


Bi-color Dot Matrix led Display 8x8 led dot matrix



Spec.:

Part No.KEM-12088-A/BSRG
Emitting colorDual color: super red + super green
Array8x8
Dot Diameter3mm
Size32 x 32mm
Surface colorBlack/Grey
PINs Q'ty24 PINs
PolarityCommon cathode/common anode

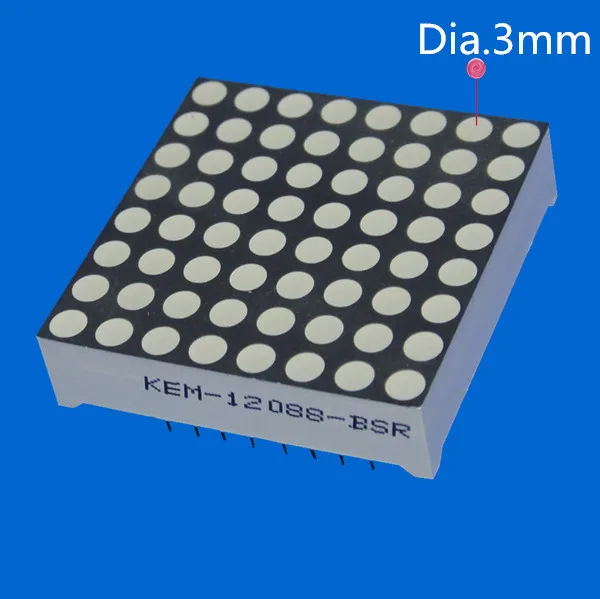

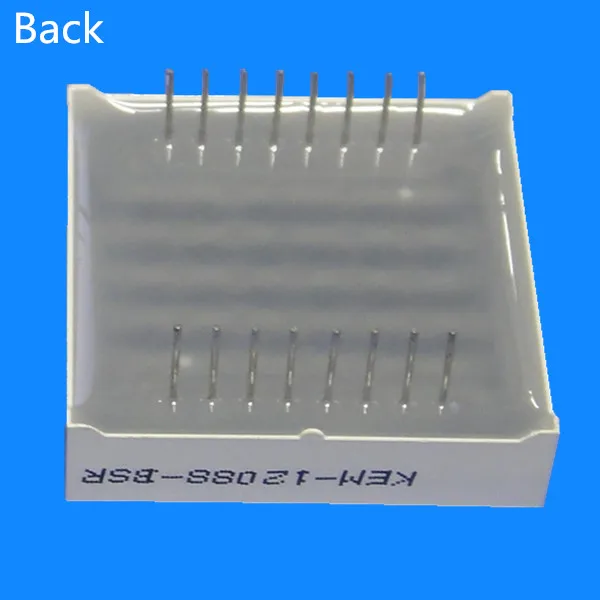

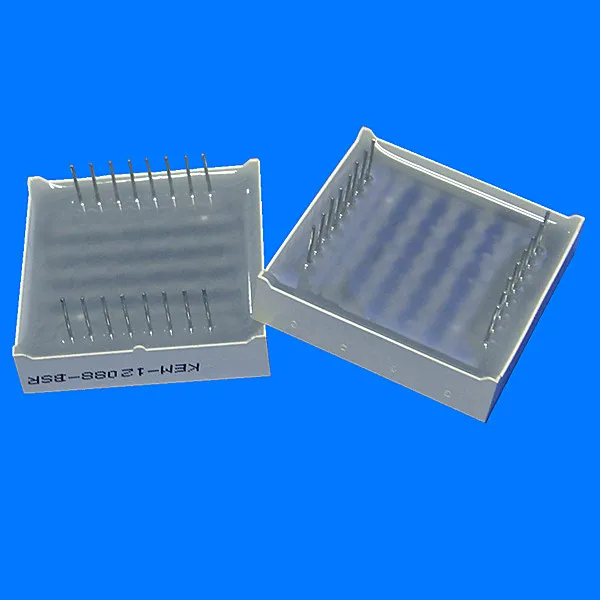

Product Pictures:

Bi-color Dot Matrix led Display 8x8 led dot matrixBi-color Dot Matrix led Display 8x8 led dot matrixBi-color Dot Matrix led Display 8x8 led dot matrixBi-color Dot Matrix led Display 8x8 led dot matrix

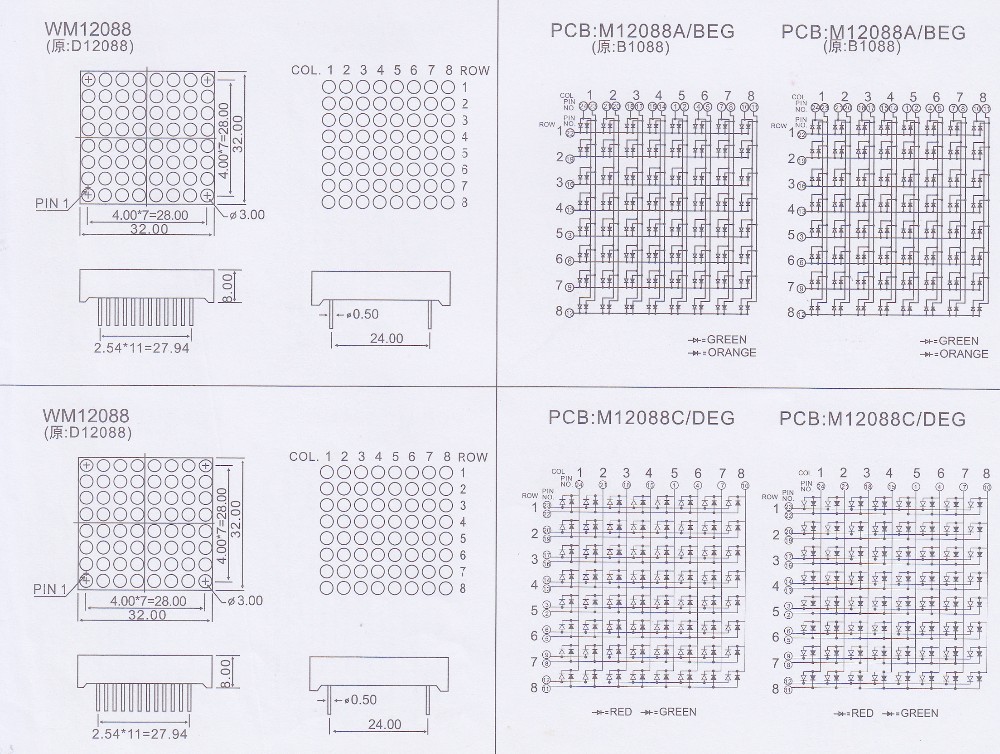

Dimension and Internal Circuit Diagram

Bi-color Dot Matrix led Display 8x8 led dot matrix





 Note: If above dimension & PCB layout not meet your requirements, please come to me for other choices.









Other size for you choice:

modeldot diameterarraylength*width
KEM-7057-AB1.9mm5*7 dot12.7*17.8mm
KEM-7088-AB1.9mm8*8 dot20*20mm
KEM-10057-AB2.54mm5*7 dot19.96*27.94mm
KEM-11057-AB3.0mm5*7 dot 22.75*31.8mm
KEM-12057-AB3.0mm5*7 dot22.80*39.1mm
KEM-12088-AB3.0mm8*8 dot32.0*32.0mm
KEM-12288-ABsquare 3.0*3.0mm8*8 dot31.7*31.7mm
KEM-15088-AB3.7mm8*8 dot37.9*37.9mm
KEM16057-AB4.5mm5*7 dot29.4*44.9mm
KEM-19088-AB4.8mm8*8 dot47.8*44.9mm
KEM-20057-AB5.0mm5*7 dot37.8*53.1mm
KEM-20088-AB5.0mm8*8 dot 50.7*50.7mm
KEM-23058-AB5.0mm 5*8 dot37.8*60.6mm
KEM-2488-ABsquare6.0*6.0mm8*8 dot60.2*60.2mm
KEM-40057-AB10.0mm5*7 dot76.0*106.5mm
KEM-46058-AB 5.0mm5*8 dot76.0*121.5mm

 Overview



 1. We can supply you all kinds of Dot Matrix Display:

---Dot Dia. from 1.9mm to 10mm

---Array type: 5x7 dots, 5x8 dots, 8x8 dots

2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc

3. Available surface color: black and grey

4. Dot exposy color: milky white, water clear or same with emitting color



Delivery time



 Quantity                        lead time

1-10Kpcs                       3-7 days

10.1K-50Kpcs                7-15 days



 All delivery way is available.



With over ten years experience in this field, we do believe we can become your reliable supplier!
