1W 810nm High Power IR LED 3535 SMD
1W 810nm High Power IR LED 3535 SMD
HOUKEM 1W 810nm IR LED is a high-power infrared LED with a 3535 SMD package, designed for professional infrared sensing, night vision, machine vision, security surveillance, optical equipment, and specialized electronic systems. Multiple viewing angles are available, with OEM customization for professional B2B applications.
810nm IR LED Key Specifications
| Specification | Details |
|---|---|
| Product Type | High Power IR LED |
| Item Name | High Intensity 3535 1W SMD IR 810nm LED |
| Keyword | SMD IR 810nm LED |
| Package | 3535 SMD |
| Power | 1W |
| Chip Quantity | 1 pc |
| Chip Material | AlGaInP |
| LED Chip | Epileds |
| Color | Infrared |
| Input Voltage | 1.5V |
| Forward Voltage | 1.0–1.2V |
| Viewing Angle | 30° / 60° / 90° / 120° |
| Radiant Flux | 100mW |
| Optical Attenuation | 1% |
| Power Dissipation | 1 |
| Lifespan | 50,000 hours |
| Working Time | 50,000 hours |
| Operating Temperature | 30–60°C |
| Storage Temperature | -30–100°C |
| Support Dimmer | No |
| Lighting Solutions Service | Lighting and circuitry design |
| Warranty | 2 years |
| Certification | CE, RoHS, ETL |
| Product Weight | 0.001 kg |
| Brand | HOUKEM |
| Place of Origin | Guangdong, China |
| OEM | Yes |
Wavelength confirmation required: The product name and page positioning identify this product as an 810nm IR LED, while the original specification table lists 1400–1600nm. These values are technically inconsistent. Please confirm the correct peak wavelength with engineering before publishing the final specification table. For an 810nm product, the wavelength should be presented using the verified engineering/datasheet value.

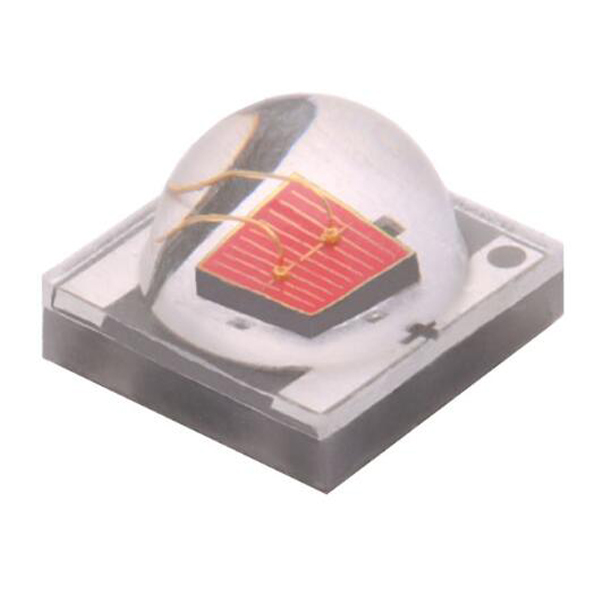

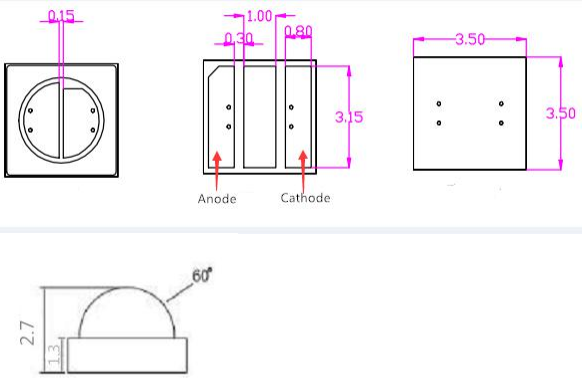

3535 SMD Package for Professional IR Applications
The 3535 SMD package provides a compact format for integrating a 1W infrared light source into optical modules, sensing equipment, and customized electronic systems. Available 30°, 60°, 90°, and 120° viewing angles allow engineers to select the optical distribution according to the application.
For professional B2B projects, the relevant optical parameters should be evaluated together with forward current, forward voltage, radiant flux, viewing angle, working distance, detector sensitivity, and thermal management. Industry 810nm 3535 IR LED products are commonly specified by peak wavelength, radiant power, forward voltage, and beam angle rather than visible-light metrics such as color temperature or CRI.
810nm IR LED Applications
This high-power 810nm infrared LED can be considered for:

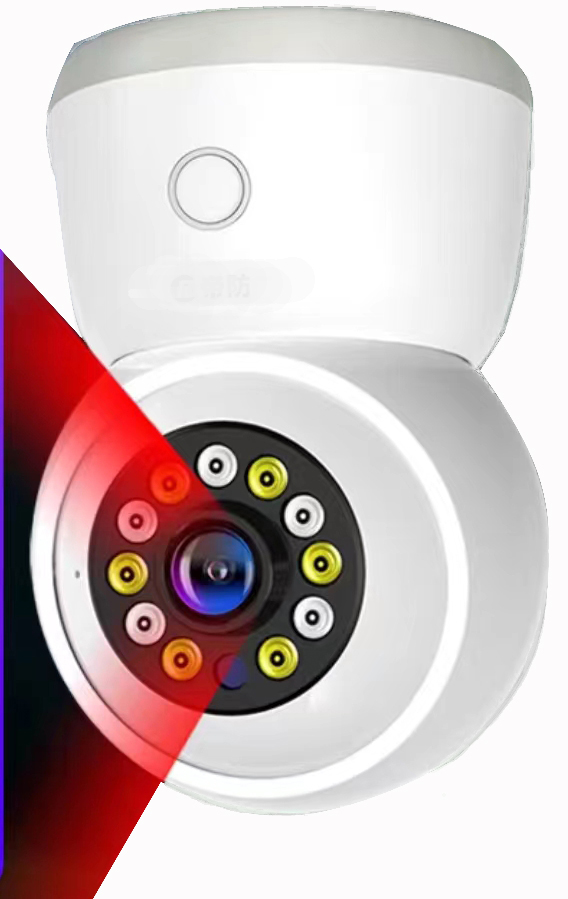

Security surveillance and CCTV equipment
Night vision illumination systems
Machine vision and industrial inspection
Optical sensing and detection equipment
Iris and face recognition systems

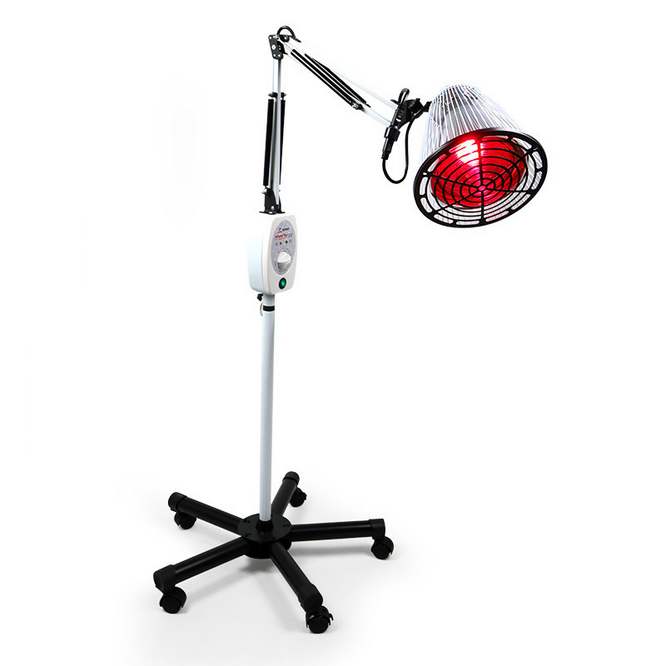

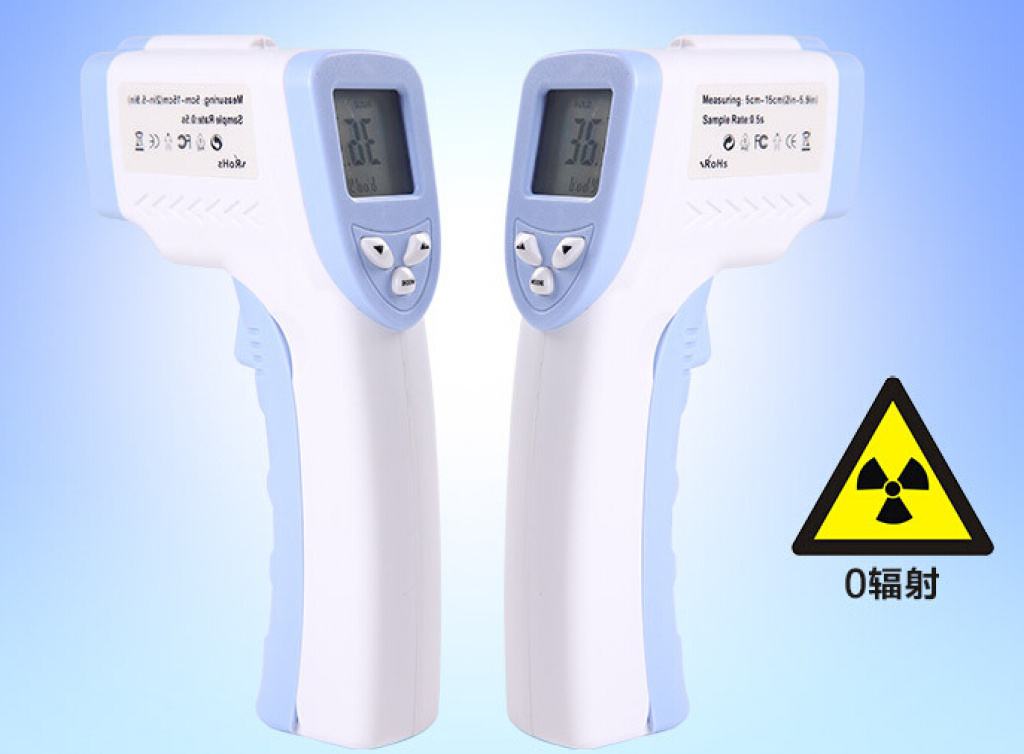

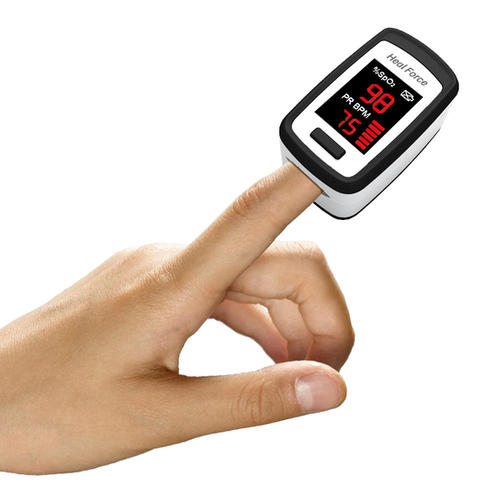

Medical and scientific instruments
Infrared scanning and specialized optical equipment
Customized infrared LED modules
Similar 810nm 3535 IR LED products are used in medical and scientific instruments, inspection, surveillance, night vision, iris and face recognition, and other professional optical equipment.
HOUKEM OEM and B2B Manufacturing Support
Dongguan Houke Electronic Co., Limited is a professional manufacturer engaged in the R&D, production, sales, and service of high-power UV LED and IR LED products. HOUKEM is located in Dongguan, Guangdong, China, with experienced staff supporting product requirements and quality control.
In addition to LED components, HOUKEM can provide LED module solutions involving drivers, heat sinks, cooling fans, and related lighting or circuitry design. OEM customization is available for professional projects.
Frequently Asked Questions
Can I order samples of the 810nm IR LED?
Yes. HOUKEM accepts sample orders for product evaluation and quality testing before bulk purchasing.
Can the 3535 SMD IR LED be customized?
Yes. OEM customization is available, including product specifications and logo requirements subject to MOQ and engineering confirmation.
What is the standard lead time?
Sample orders from stock generally require 3–7 days, while mass production typically requires 25–30 days.
What quotation terms does HOUKEM offer?
FOB, CIF, CFR, and EXW terms are available for international B2B orders.
What quality assurance is provided?
Products are tested before shipment and are listed with CE, RoHS, and ETL certifications, with a 2-year warranty stated for this product.
Request a Quote for 810nm IR LED
Looking for a 1W 810nm IR LED, 3535 SMD infrared LED, or customized high-power IR light source? Contact HOUKEM with your required wavelength, viewing angle, quantity, application, and electrical specifications for technical evaluation and quotation.
