900nm 900 nm 905nm infrared led 3W 1W high power ir led
- Input Voltage(V):DC 1.4-1.5V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:3W High Power ir LED 900nm
- Forward Current:500mA
- Forward Voltage:1.4-1.5v
- Application:laser light
- Wave length:900-905nm
- Chip Size:42mil
- Certification:RoHS,CE,ISO9001
- Chip brand:Epileds 42mil
- Other Wavelength:255-1550nm
- Other colors:red
High power 3 watt 900nm 905nm 900 nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 500mA | 1.4 | 1.5 | 1.5 | V |
Luminous Flux | Φv | IF = 500mA | 50 | -- | 60 | mw |
Viewing Angle | 2θ1/2 | IF = 500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 500mA | 900 | -- | 905 | nm |
| other IR LED Wavelength | 700-710nm, 730-735nm, 740-745nm, 760-765nm, 780-785nm, 800-805nm,805-810nm, 830-840nm,850-855nm, 880-890nm, 910-920nm, 930-940nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1040-1050nm, 1030-1035nm, 1345-1350nm,1450nm |

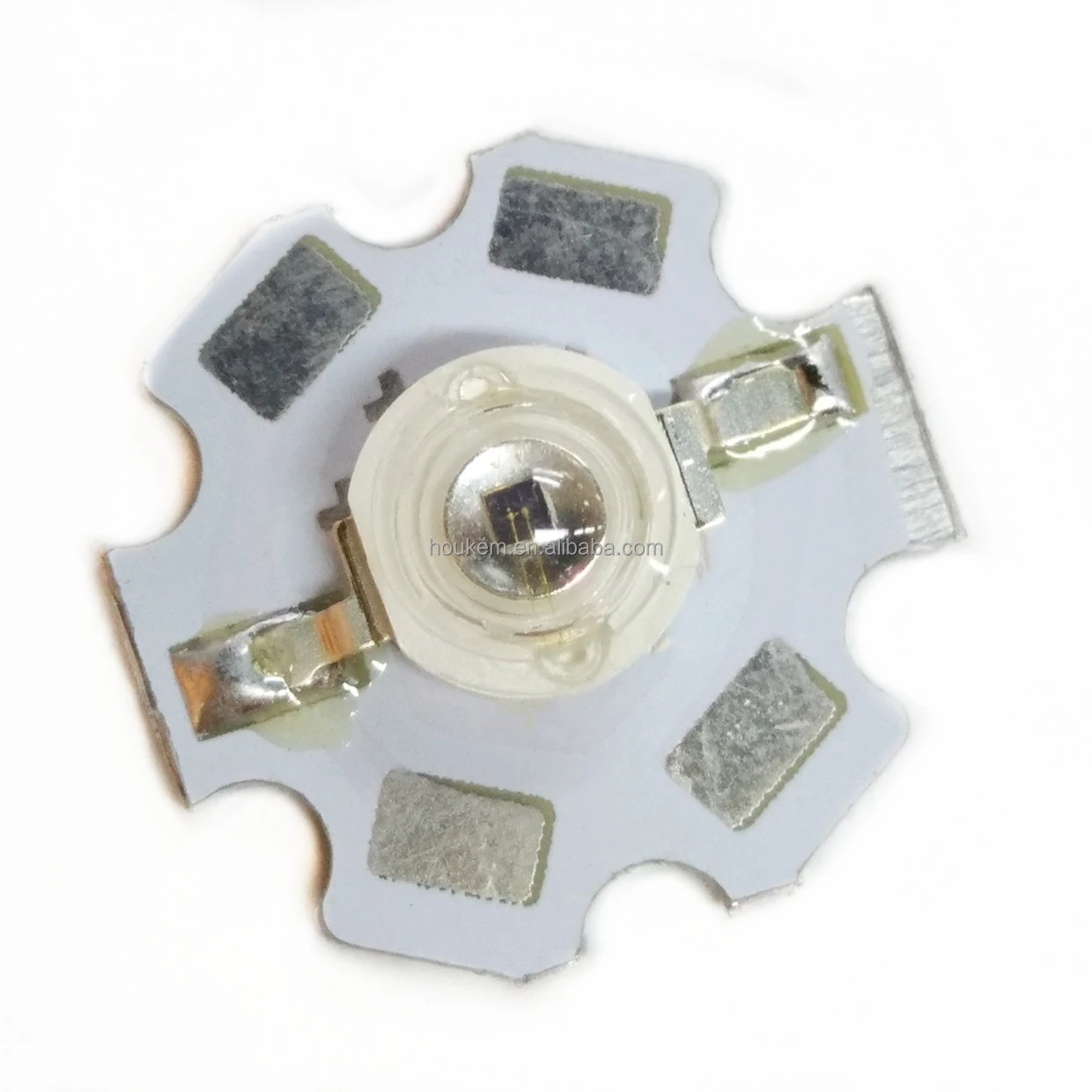

with start pcb board is available(20mm)
100w
70w
50w
30w
10w
5w
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
