5x7 LED Dot Matrix Display Module
5x7 Dot Matrix LED Display Module
The5x7 dot matrix LED display is a compact character display module designed for electronic equipment, industrial control systems, instrumentation, and embedded applications. This 3mm red LED matrix features low power consumption, high brightness, and stable performance for long-term operation.
HOUKEM offers both common anode LED dot matrix displayandcommon cathode LED matrix display options to meet different circuit design requirements. OEM customization is available for color, brightness, and electrical specifications.
Key Features
- 5x7 dot matrix LED display structure
- 3mm round LED package
- High brightness output
- Low power consumption
- Common anode and common cathode options
- Stable and reliable performance
- Suitable for OEM electronic applications
- Multiple emitting colors available
Available Models
| Model Number | Configuration |
|---|---|
| HOUKEM-12057-BSR | Common Anode (CA) |
| HOUKEM-12057-ASR | Common Cathode (CC) |
Technical Specifications
| Item | Specification |
|---|---|
| Item No. | HOUKEM-12057-BSR |

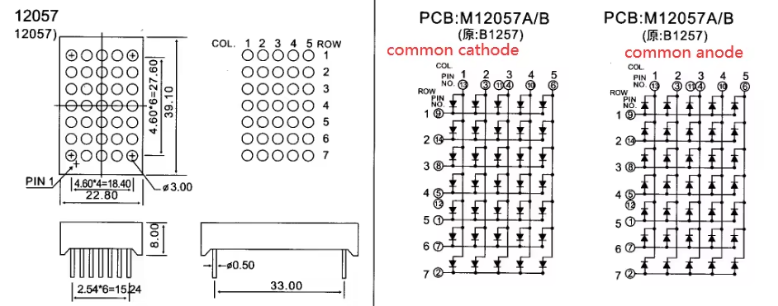

| Dimension | 22.8 × 39.1 × 8 mm |
| Surface Color | Black / Grey |
| Epoxy Color | White |
| Emitting Color | Super Red |
| Display Type | 5x7 Dot Matrix LED Display |
| LED Size | 3mm Round LED |
Optical Characteristics
Test Condition: IF = 15mA
| Emitting Color | Peak Wavelength (nm) | Forward Voltage Typ (V) | Forward Voltage Max (V) | Luminous Intensity Typ (mcd) | Luminous Intensity Max (mcd) |
|---|---|---|---|---|---|
| Amber / Orange | 600-605 | 1.9 | 2.0 | 100 | 120 |
| Super Green | 565-575 | 1.9 | 2.0 | 48 | 55 |
| Super Red | 620-625 | 1.8 | 2.0 | 110 | 150 |
| Ultra Red 1 | 620-625 | 1.8 | 2.0 | 200 | 210 |
| Ultra Red 2 | 620-625 | 1.8 | 2.0 | 300 | 350 |
| High Red | 638-660 | 1.8 | 1.9 | 15 | 20 |
| Yellow Green | 570-580 | 1.9 | 2.0 | 43 | 50 |
| Yellow | 580-600 | 1.9 | 2.0 | 70 | 80 |
| Blue | 465-475 | 2.95 | 3.0 | 150 | 200 |
| Pure Green | 515-525 | 2.9 | 3.0 | 600 | 640 |
| White | — | 2.8 | 2.9 | 200 | 220 |
Available Display Options
HOUKEM can provide various display configurations based on project requirements:
- Common Anode LED Dot Matrix Display
- Common Cathode LED Dot Matrix Display
- Red LED Matrix Display
- Green LED Matrix Display
- Yellow LED Matrix Display
- Blue LED Matrix Display
- White LED Matrix Display
Custom specifications are available for OEM and ODM projects.
Typical Applications
- Industrial control equipment
- Electronic instruments
- Embedded systems
- Measuring devices
- Signal indication equipment
- Consumer electronic products
- Information display modules
FAQ
What is the difference between common anode and common cathode LED dot matrix displays?
A common anode display shares the positive connection, while a common cathode display shares the negative connection. The selection depends on your driving circuit design.
Can HOUKEM provide customized LED dot matrix displays?
Yes. We support customization of emitting color, brightness, electrical characteristics, and packaging according to project requirements.
Are samples available before mass production?
Yes. Samples can be provided for testing, design verification, and qualification before volume orders.
What industries commonly use 5x7 dot matrix LED displays?
These displays are widely used in industrial equipment, electronic instruments, control panels, embedded systems, and information display devices.
Do you support OEM and ODM projects?
Yes. HOUKEM provides OEM and ODM manufacturing services for global electronics manufacturers and solution providers.
Request a Quote
Looking for a reliable 5x7 dot matrix LED displaymanufacturer?
- OEM & ODM support
- Common anode and common cathode options
- Sample evaluation available
- Technical datasheets provided
- Volume pricing for bulk orders
Contact HOUKEM today to receive a quotation within 24 hours.
