5'' 7 segment Led display, 126.5mm digit height 1 digit seven segment led display cc ultra red color
5'' 7 segment Led display, 126.5mm digit height 1 digit seven segment led display cc ultra red color
5'' 7 segment Led display, 126.5mm digit height 1 digit seven segment led display cc ultra red color
5'' 7 segment Led display, 126.5mm digit height 1 digit seven segment led display cc ultra red color
5'' 7 segment Led display, 126.5mm digit height 1 digit seven segment led display cc ultra red color

5'' 7 segment Led display, 126.5mm digit height 1 digit seven segment led display cc ultra red color

Model NO.
Houkem-50011-AUR
Price:
USD 4.30-4.50
Delivery:
FOB
Minimum order quantity:
1
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:25mm
  • Tube Chip Color:red
  • Brand Name:KEM
  • Model Number:Houkem-50011-AUR
  • Screen Dimension:105*140mm


Product Describtion
business card (2)


5inch Led Digital Display 126.5mm digit Height 1 Digit 7 Segment led display CC ultra Red color







Houkem-50011-BUR---------common andoe(CA)

Houkem-50011-AUR----------common cathode(CC)





Item No.Houkem-50011-AUR
dimension105*140*15.8mm
Surface color  Black  /Grey
epoxy color white
Emitting color  Ultra red

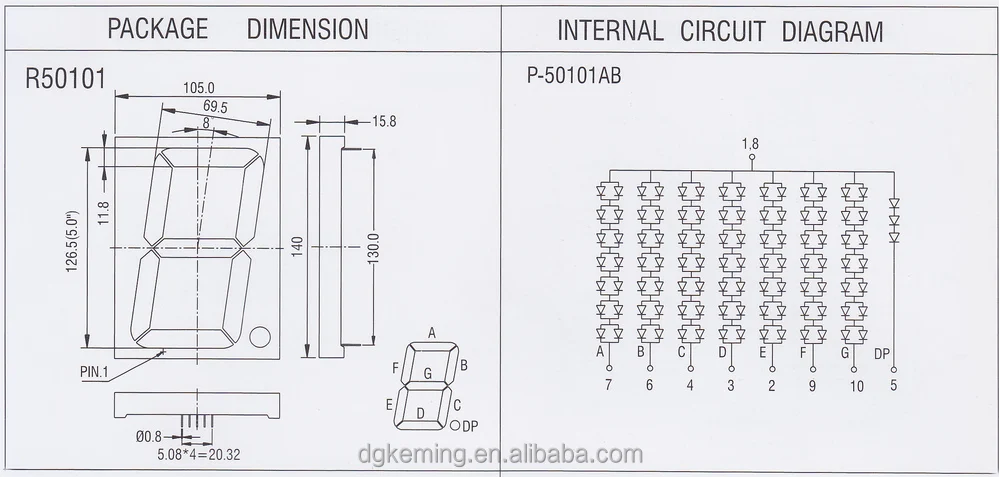

Package dimension & Internal circuit diagram







50011-dtst





Note: If this PCB layout don't meet your requirements, please contact me for other choices.





Two years quality warranty

1,Low consumption

2, High brightness

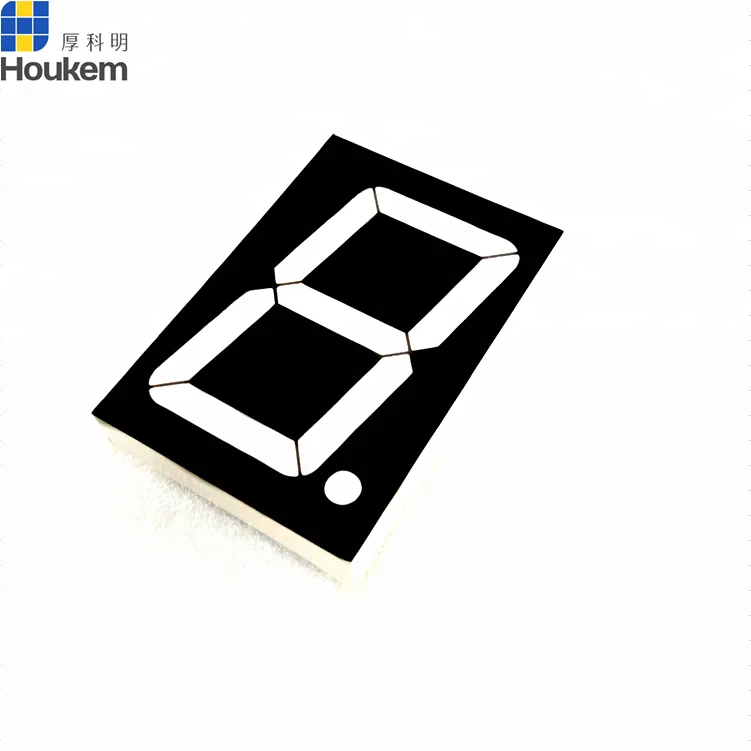

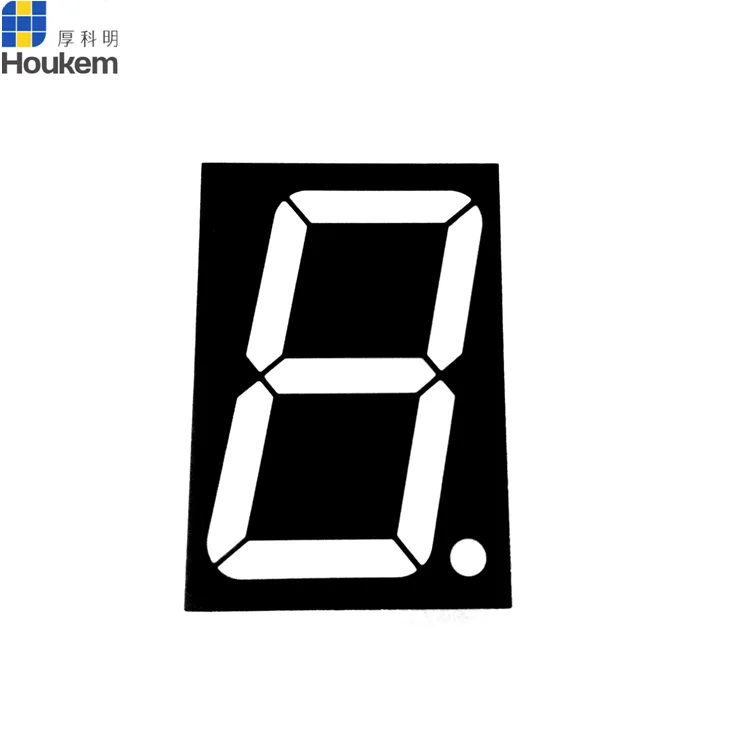

5inch 7 segment led display

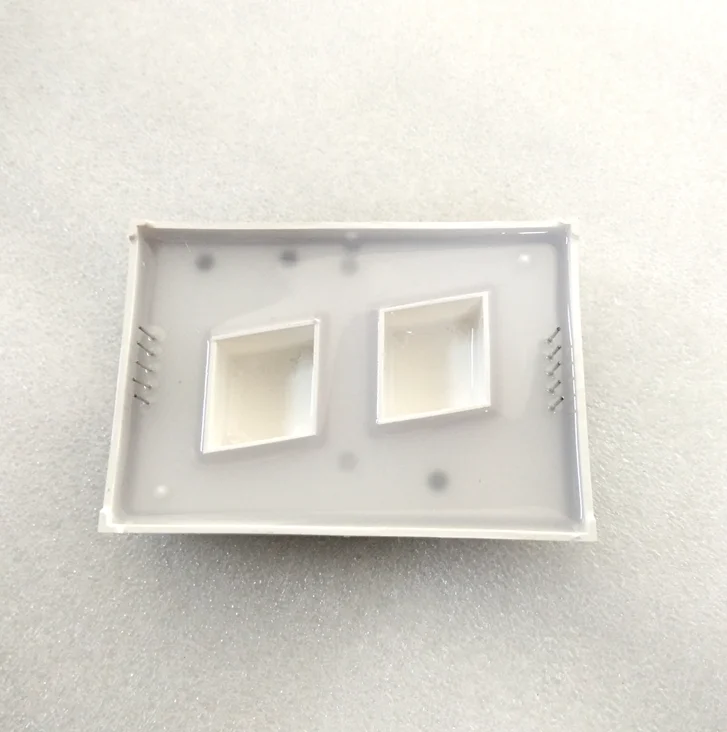

5'' 1 digit 7 segment led display





23011 (2).png











Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200



Working process

 working process

Our Services


Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green,

blue, yellow, white, amber, Bi-color, RGB.









Packaging & Shipping

-451

shipping

Contact us

 Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays,

Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays,

High power led, high power 260nm to 1050nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens,

LED spot light, high bay light, street light,and all LED lighting application solution, etc.
