30w cob led epistar chip
30w cob led epistar chip
30w cob led epistar chip

30w cob led epistar chip

Model NO.
HNK-CS2525F23 cob led chip
Delivery:
FOB
Quantity:
  • Type:COB LED
  • Place of Origin:CN;GUA
  • Brand Name:KEM
  • Power Dissipation:3
  • Optical Attenuation(%):0.1
  • Storage Temperature(℃):-20 - 60
  • Emitting Color:Warm White
  • Operating Temperature(℃):-20 - 60
  • Viewing Angle(°):160
  • Certification:CE
  • Certification:RoHS
  • Color Temperature:2800-7000K
  • Luminous Flux(lm):250-1800lm
  • Model Number:HNK-CS2525F23 cob led chip
  • Chip Material:InGaN
  • Power:15-30W



Product Description



   30w cob led epistar chip

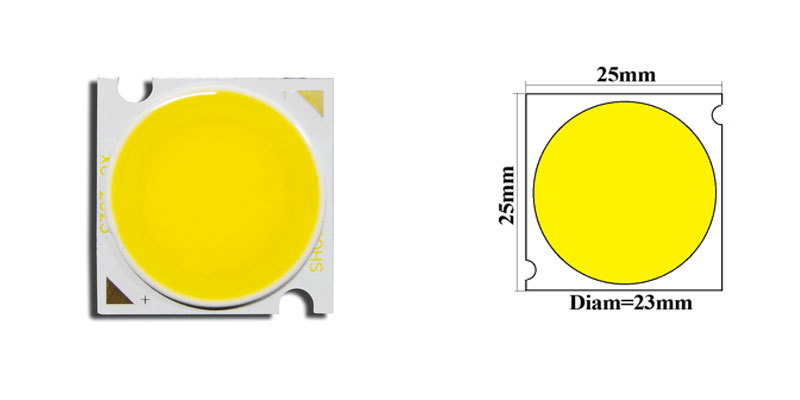

Dimension


Specification





Part No.

Power

  (W)

Voltage
(V)
Luminous Flux (lm)Emitting colorWavelength/CCT
(nm/k)
Current
(mA)
HNK-CS2525F2315W1545-48V1350-1500White2500-20000300mA
HNK-CS2525F2320W2032-36V1800-2000White2500-20000600mA
HNK-CS2525F2330W3032-36V2700-3000White2500-20000900mA

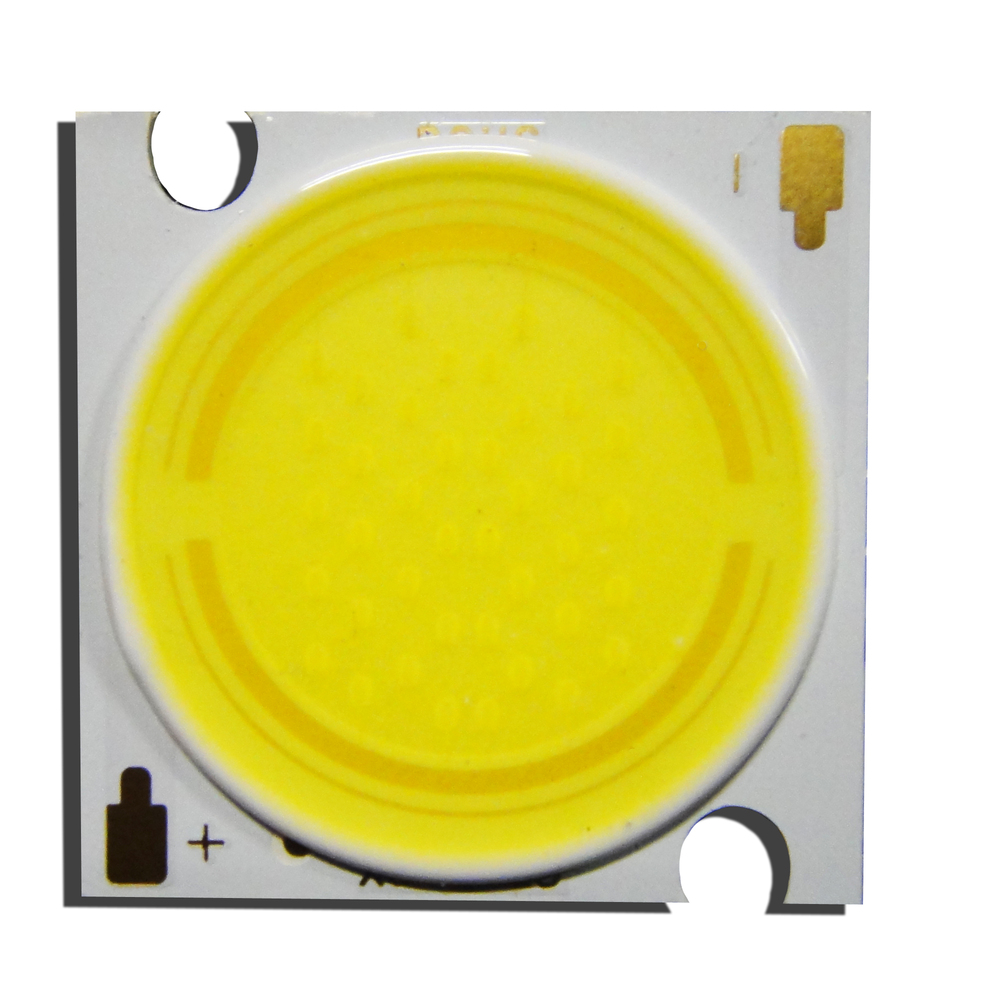

 Product photo:

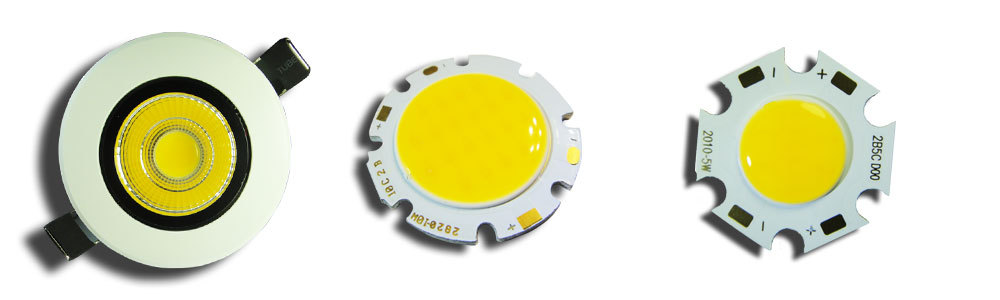

Series information








Series informationShapeDimension Size(mm)Luminous surface (mm)Power (W)
HNK-CC28F20Round28203-10
HNK-CC20F10Round20103-10
HNK-CC48F42Round484210-30
HNK-CC76F65Round766520-30
HNK-CS2325F20Square23x252012-30
HNK-CS1919F18Square19x191815-30
HNK-CS2525F23Square25x252315-30
HNK-CS2828F25Square28x282520-30









                                               Chip information.jpg









Application



Application for 30w cob led epistar chip



Round full lighting module is widely used for LED bulb,LED cup,LED spotlight,LED downlight and so on.





 COB







Certifications

 Certification for 30w cob led epistar chip

                             certificated
