- Input Voltage(V):DC 5.5-6V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):26
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:purple
- Luminous Intensity:30mw
- Power:1w
- Viewing Angle(°):60
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM

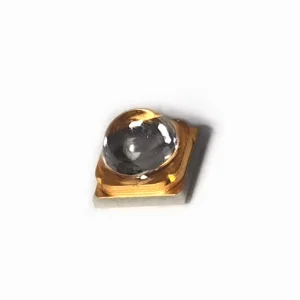

- Product name:1W High Power uvb LED 295nm
- Emitting Colour:puple
- Forward Voltage:5.5-6v
- Warranty:2 Years
- Wave length:290-300nm
- Current:200mA
- Chip Size:30*30mil
- Application:Medical Treatment, phototherapy
- Certification:RoHS,CE,ISO9001
- Chip brand:pw
High power 1w 298nm 293nm 295nm uv b led
Electrical and optical characteristics (Ta = 25℃, If=200mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage
| VF | IF = 200mA | 5 | 5.8 | 6 | V |
Radiant Flux [mW]
| mW | IF = 200mA | 22 | 25 | 30 | mw |
Viewing Angle
| 2θ1/2 | IF = 200mA | ---- | 60 | ---- | Deg. |
Dominate Wavelength
| λd | IF = 200mA | 290 | -- | 300 | nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization
led light
Established in 2003, Houkem has 19 years professional manufacturer experience, development, production,
sale and service of LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,
dot-matrix Led displays, bar graph arrays and LED direction indicator displays, High power led, high power 255nm
to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production
Machines and Spectrum Test Machine. The products are also exported to clients in countries like USA,
Germany, Japan, Korea etc.
