1w edison led with epistar chip made in China
1w edison led with epistar chip made in China
1w edison led with epistar chip made in China

1w edison led with epistar chip made in China

Model NO.
HNK-HP001-B35
Price:
USD 0.18-0.20 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
1000000 piece / Month
Country of Origin:
SHENZHEN, CHINA
Stock Time:
5~7 days after the order confirmed Days
Quantity:
  • Type:High Power LED
  • Place of Origin:CN;GUA
  • Power:1W
  • Brand Name:HNK
  • Viewing Angle(°):140
  • Certification:CE
  • Certification:RoHS
  • Model Number:HNK-HP001-B35
  • Chip Material:InGaN

Product Name1w edison led

Product Number: HNK-HP001-B35



Specifications

ColorColor Tempreture(K)/ Wavelength(nm)Lumens(LM)Viewing Angle ChipBrandChip Size(MIL)Input voltage(V) Input current (mA)
Warm white2800~6000 K100~150140 degree or customizedBridgelux, Epistar     35×35 or 45×45     3.0~3.4 (RED: 2.0~2.4V) 300~350
Pure white6000~7000 K110~160
Red620~660 nm50~60
Green510~525 nm80~90
Blue455~470 nm60~70
Purple390~420 nm30~40



Absolute Maximum Rating (Ta = 25°C)

ItemsSymbolMaximumUnits
DC Forward CurrentIF800mA
Peak forward currentIFP1000mA
Reverse VoltageVR5V
Power consumptionPD3200mW
Operation TemperatureTopr-20~+75°C
Storage TemperatureTstg-30~+80°C
Lead Soldering TemperatureTsol

Max 260°C for 5 sec Max (3mm from the base of the )



Product Optical Properties (Ta = 25°C)

ItemSymbolConditionsMinAveragMax  Units
Forward Voltage vFIF=350mA3.03.23.4V
Reverse current IRVR=5V------10uA
Color Temperature CCTIF=700mA270030003300K
Chromaticity Coordinates XIF=700mA---0.31------
YIF=700mA---0.33------
Luminous Flux IVIF=700mA90100 lm
50% power Angle 1/2H-HIF=700mA---140---deg
1/2V-VIF=700mA---------deg

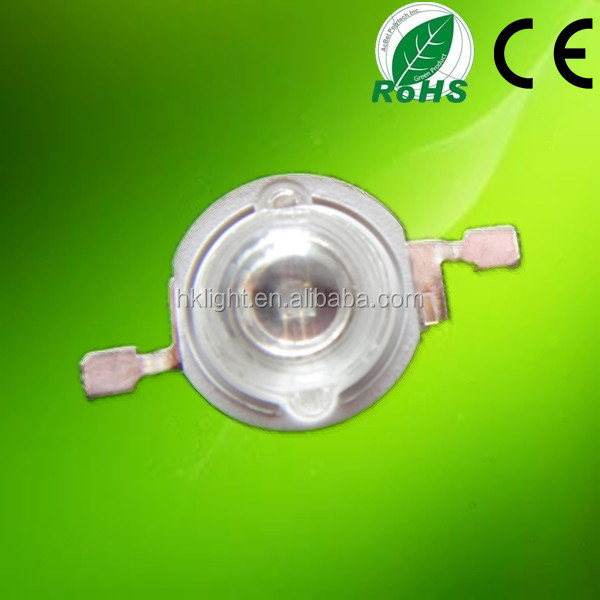

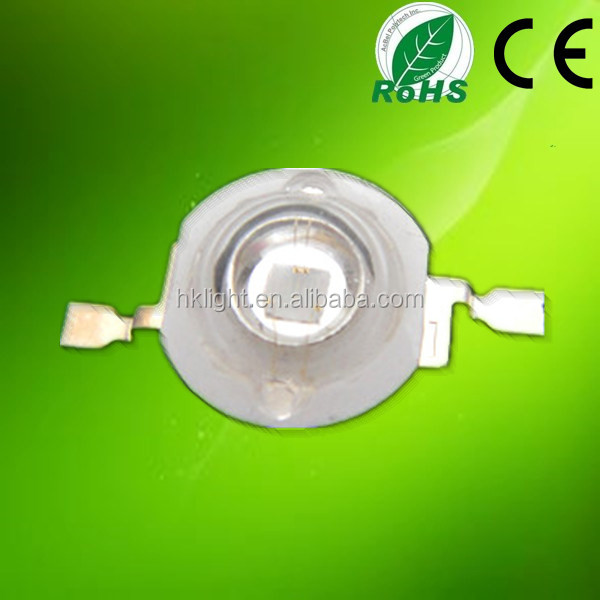

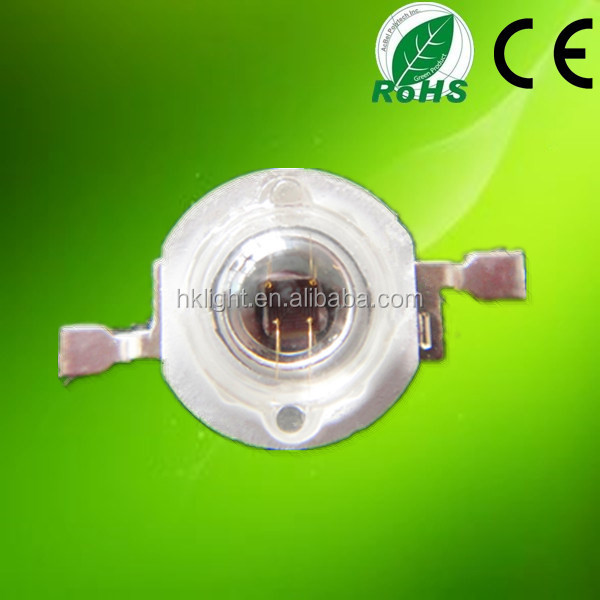

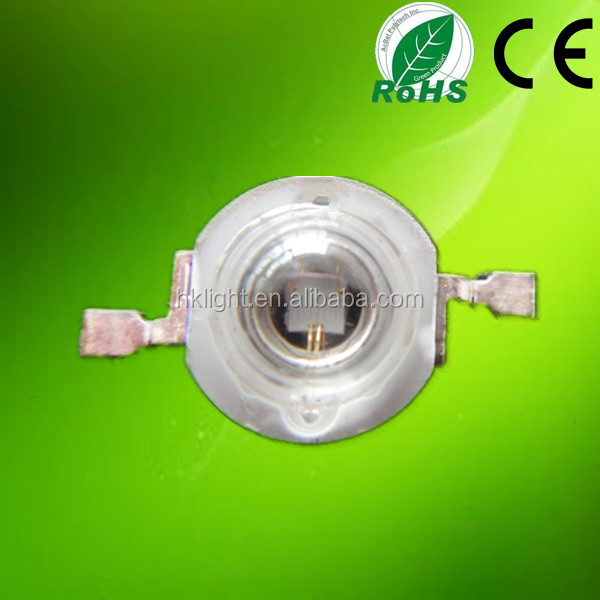

Pictures

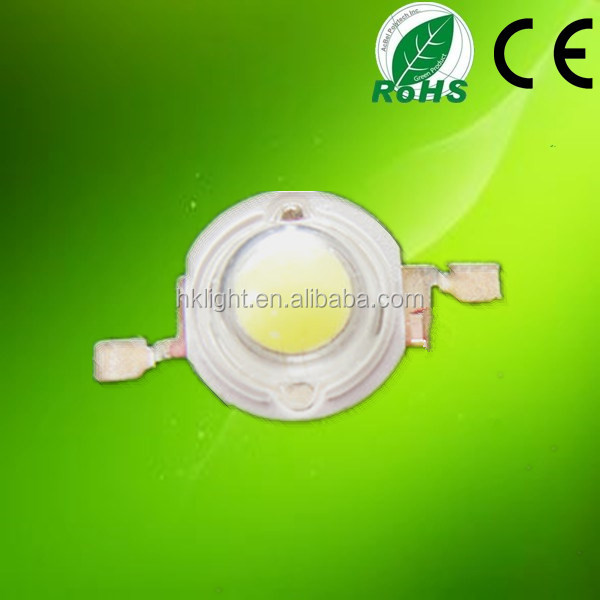

1w edison led

                                                WHITE



 1w edison led

                                                                                      RED



1w edison led

                                                                                 GREEN



1w edison led

                                                                                     BLUE



 1w edison led

                                                                                PURPLE



Package

1w edison led





Our Services

1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products.

2.Our products must pass strict quality control procedures.

3.We have advanced production equipment.

4.We use the raw materials are from domestic and foreign well-known brand manufacturers.

5.After repeated tests before shipment.





Part of Our Partner

1w edison led



Our Factory





What can HNK offer?

Our products covers a wide range. We can offer you, high power LED array(1~100w), COB LED, street light LED, LED optical lens, LED spot light, high bay light, street light, and all LED lighting application solution.



Why choose HNK LED?

Client oriented, technology first, honest operation is our business philosophy. HNK always treat the client's benefits as the most important thing. So, we ues the top brand material to produce high quality product. Also, KEMING is not only a manufacturer for LEDs and optical lens, but also a lighting application solution provider, we can be your lighting consultant whenever you need.







Certificatefor Led Flood Light



1w edison led





1w edison led
