- Type:High Power LED
- Lighting solutions service:sterilization
- Luminous Efficacy(lm/w):26
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.01
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:3w
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:3W UV LED 265nm
- Emitting Colour:puple
- Forward Voltage:6-6.5v
- Lifespan:50000 Hours
- Application:sterilization
- Warranty:2 Years
- Wave length:260-270nm
- warranty:2 Years
- Current:500mA
- Certification:RoHS, CE

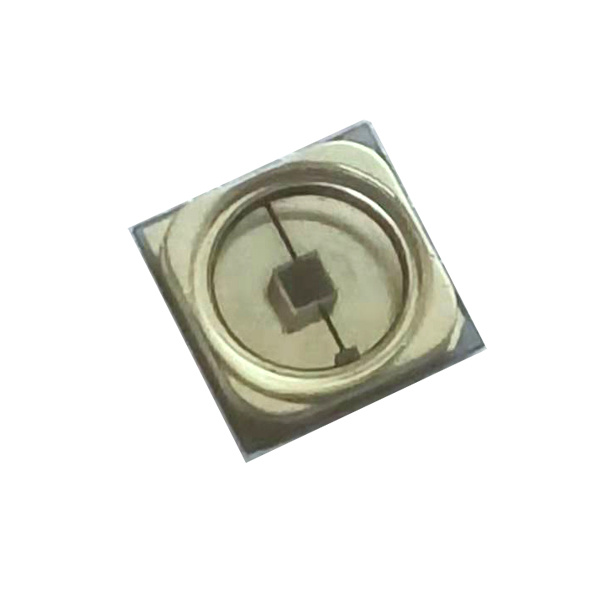

| Item | High Power 3w uvc 265nm LED 6565 |
| Power | 3w |
| radiant flux | 40-60mw |
| Color | purple |
| Diode type | 6565 smd type |
| View Angle of the Lens | 60 degree or 120degree |
| Wavelength | 260-270nm |
| Forward Current | 500mA |
| Forward Voltage | 6-6.5v |
| Certification | CE, RoHS |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization
Cautions on use
(1) Do not look directly into the UV light during operation. This can be harmful to your eyes and skin.
(2) Wear protective eyewear to avoid exposure to UV light.
(3) Attach caution labels to your products which contain UV LEDs.
(4) Avoid direct eye and skin exposure to UV light, Keep out of reach of children.

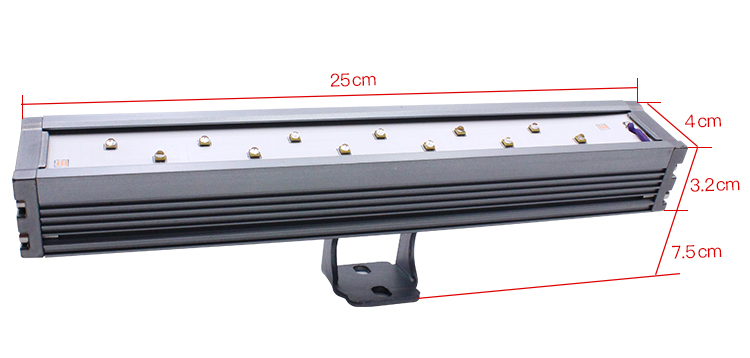

UVC LED sterilizer light
Established in 2003, our factory is specialized in LED products, including High power led, high power 255nm to 1550nm LED arrays,
COB LEDs, SMD LEDs, street light LED, LED optical lens, uvc led sterilizer light, led flood light, and all LED lighting application solution, etc.
