100W 830nm High Power IR LED
100W 830nm High Power IR LED
HOUKEM’s100W 830nm IR LED is a high-power infrared LED designed for professional optical systems, infrared illumination, sensing, inspection, and specialized equipment. The standard wavelength range is 830–835nm, with other wavelength options available for customized infrared light source requirements.

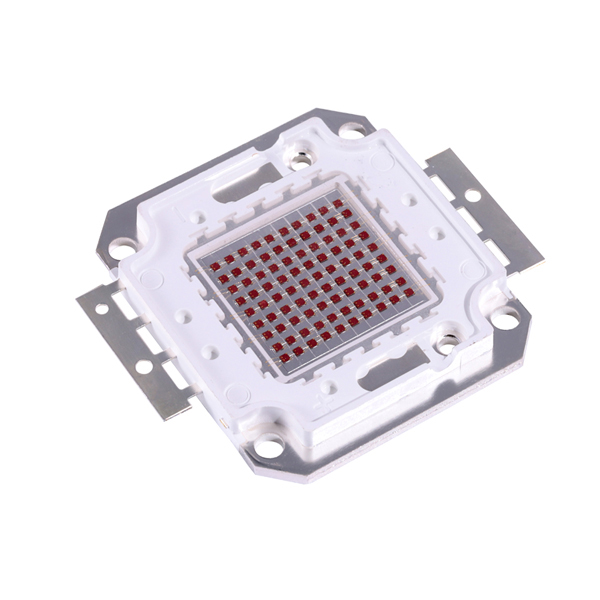

This high-power IR LED uses a 2.0mm red copper PCB and a high-power LED structure to support stable electrical and optical performance. It operates with a forward current of 1500–1750mA and provides a radiant flux of approximately 6000–7000mW.
Key Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Power IR LED |
| Product Name | 100W High Power LED 830nm |
| Power | 100W |
| Wavelength | 830–835nm |
| Forward Current | 1500–1750mA |
| Forward Voltage | 30–34V* |
| Radiant Flux | 6000–7000mW |
| Viewing Angle | 140° |
| Chip Material | AlGaInP |
| Chip Brand | Epileds |
| PCB Material | 2.0mm red copper plate |
| LED Configuration | 20 series × 5 parallel |
| Input Voltage | DC 12V |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -40 to 80°C |
| Lifespan | 50,000 hours |
| Warranty | 2 years |
| Certification | CE, RoHS |
| Frame Material | Copper |
| Product Weight | 0.03kg |
| Brand | HOUKEM |
| Place of Origin | Guangdong, China |
*The original product specification lists the forward voltage as 30–34V, while the electrical and optical characteristics table lists 30–32V. Please confirm the final value with HOUKEM engineering before production.
Wavelength and High-Power Options
The product series supports multiple infrared wavelength configurations according to application requirements, including:
830–835nm, 840–850nm, 980–985nm, 990–1000nm, 1000–1010nm, 1010–1020nm, 1030–1035nm, 1045–1050nm, 1400–1500nm, and 1550nm.
This allows OEM customers to select a suitable wavelength for their optical system, sensor response, illumination requirements, or customized infrared light source.
Typical Applications
Infrared Illumination and Optical Systems
The100W 830nm IR LED can be integrated into high-power infrared illumination systems and specialized optical equipment where higher infrared output is required.
Optical Sensing and Industrial Inspection
High-power infrared LEDs can be used as controlled light sources in optical sensing, industrial detection, inspection, measurement, and customized automation equipment. Engineers should select the wavelength according to the spectral response of the target sensor or imaging system.
Customized Infrared Equipment
HOUKEM provides lighting and circuitry design services for professional customers. For OEM projects, customers can discuss wavelength, electrical characteristics, optical output, PCB structure, and other requirements with the engineering team.
High-Power IR LED Manufacturing and OEM Support

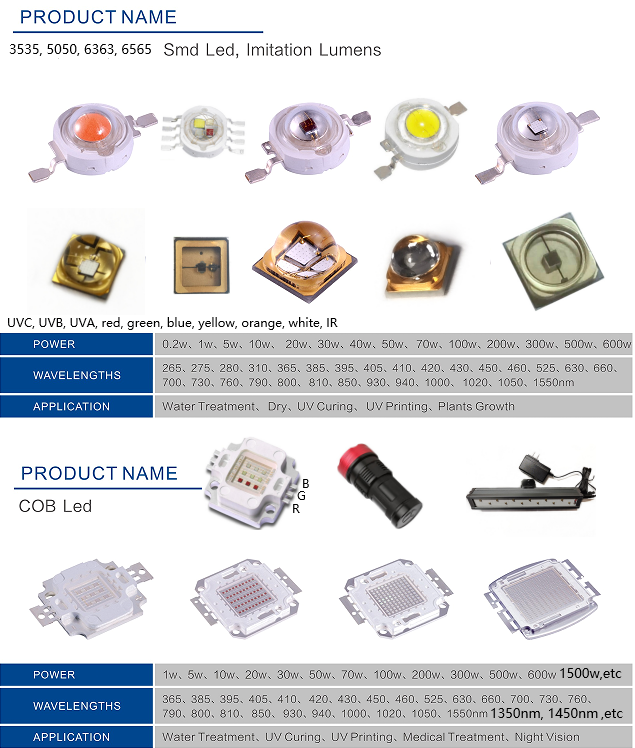

Established in 2003, HOUKEM has extensive experience in LED development, production, sales, and technical service. Our product range includes 7-segment LED/SMD displays, alphanumeric displays, SMD LEDs, dot-matrix displays, bar graph arrays, LED direction indicators, high-power LEDs, high-power 255nm–1550nm LED arrays, COB LEDs, SMD LEDs, and LED lighting solutions.

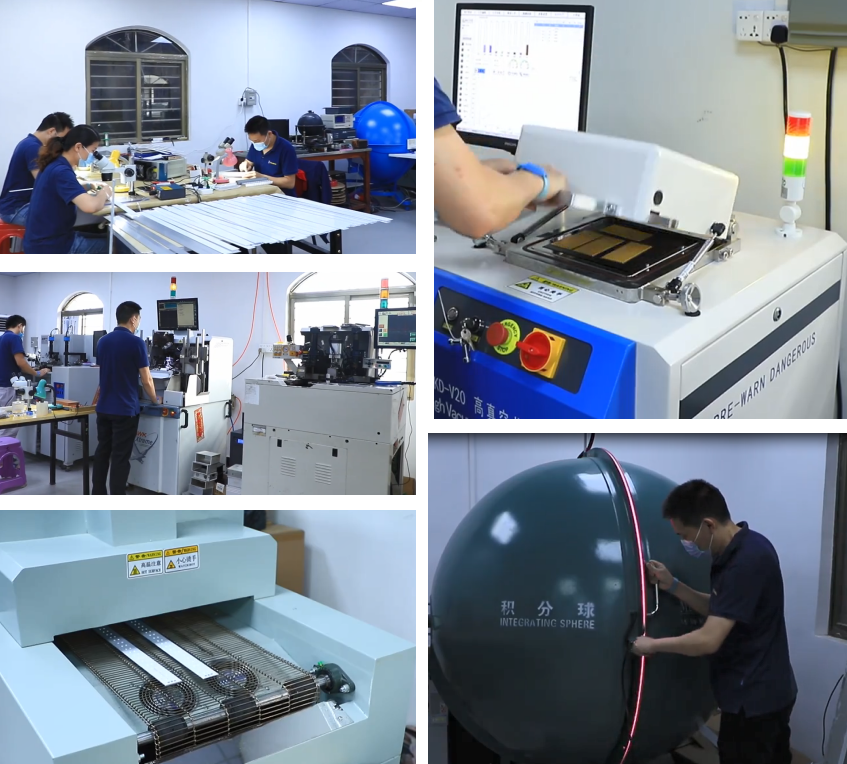

HOUKEM has introduced automatic production equipment and spectrum testing machines to support LED manufacturing and optical performance inspection. Our products are exported to customers in the USA, Germany, Japan, Korea, and other markets.
FAQ
What wavelength options are available for this 100W IR LED?
The product series covers multiple wavelength ranges from 830nm to 1550nm.
The appropriate wavelength can be selected according to the sensor, optical system, and application requirements.
Can HOUKEM customize the 100W 830nm IR LED?
Yes. HOUKEM supports customized infrared LED solutions for professional OEM and industrial projects.
Customers can provide their required wavelength, electrical parameters, optical requirements, and application details for evaluation.
What should engineers consider when selecting a high-power IR LED?
Wavelength, forward current, forward voltage, radiant flux, viewing angle, thermal management, and PCB structure should all be considered.
These parameters need to be matched with the complete optical and electrical system.
Can I order a sample before mass production?
Yes. HOUKEM supports sample orders so B2B customers can evaluate the product before placing larger orders.
Standard samples are generally available within 3–7 working days, subject to product configuration.
What B2B services does HOUKEM provide?
HOUKEM provides factory-direct supply, OEM customization, R&D support, lighting and circuitry design, and pre-sales and after-sales technical service.
Door-to-door shipping from China to the customer's warehouse can also be arranged.
Request a Quote for Your High-Power IR LED Project
Looking for a 100W 830nm IR LED or a customized high-power infrared light source? Contact HOUKEM with your required wavelength, power, quantity, application, and optical specifications. Our engineering and sales teams can help evaluate the configuration and provide a suitable B2B quotation.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
