Model NO.
HOUKEM-394D-BB
Price:
USD 1.20-3.00 / pieces
Delivery:
FOB
Minimum order quantity:
2000 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Blue
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:HOUKEM-394D-BB
  • Screen Dimension:40.4*16mm


Product Describtion

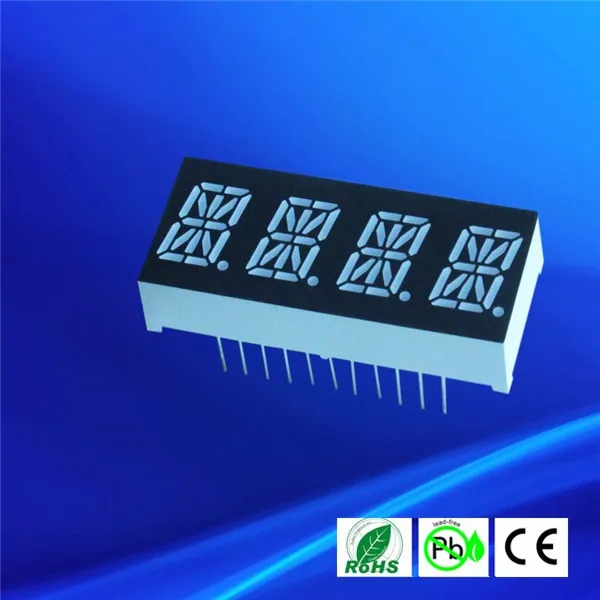

16 segment display security circuit 4 digit  0.39''



1,Low consumption

2, High brightness



Item No.HOUKEM-394D-BB
Dimension40.4*16*7mm
Surface color  Black  /Grey
epoxy color white
Emitting color BLUE





Package dimension & Internal circuit diagram

 paste-pic-dp_uuid_mww0t





Note: If this PCB layout don't meet your requirements, please contact me for other choices.



3941.11
3941.12



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=10-15mA

620-625

20

2

2.1

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.8

3.0

150

200

Pure green

IF=10-15mA

515-525

40

2.8

3.0

180

250

White

IF=10-15mA

-

-

2.8

3.0

180

200





Our Services



 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----  SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14/16 segment both available

1 digit( 0.39'', 0.5'', 0.8'', 1.2'',  2.3'')

2 digit 14 segment display(0.53'', 0.54'')

3 digit 14 segment display(0.54'')

4 digit 16 segment display(0.39'',



3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led

warranty:



Two years quality warranty

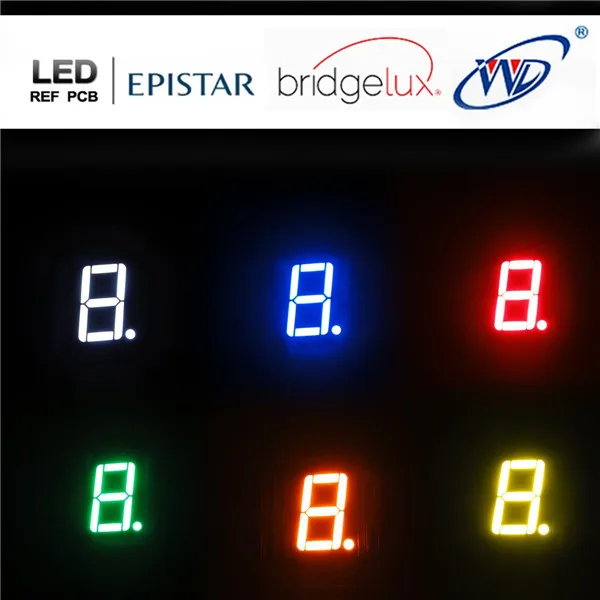

Other colors



5611-111111
